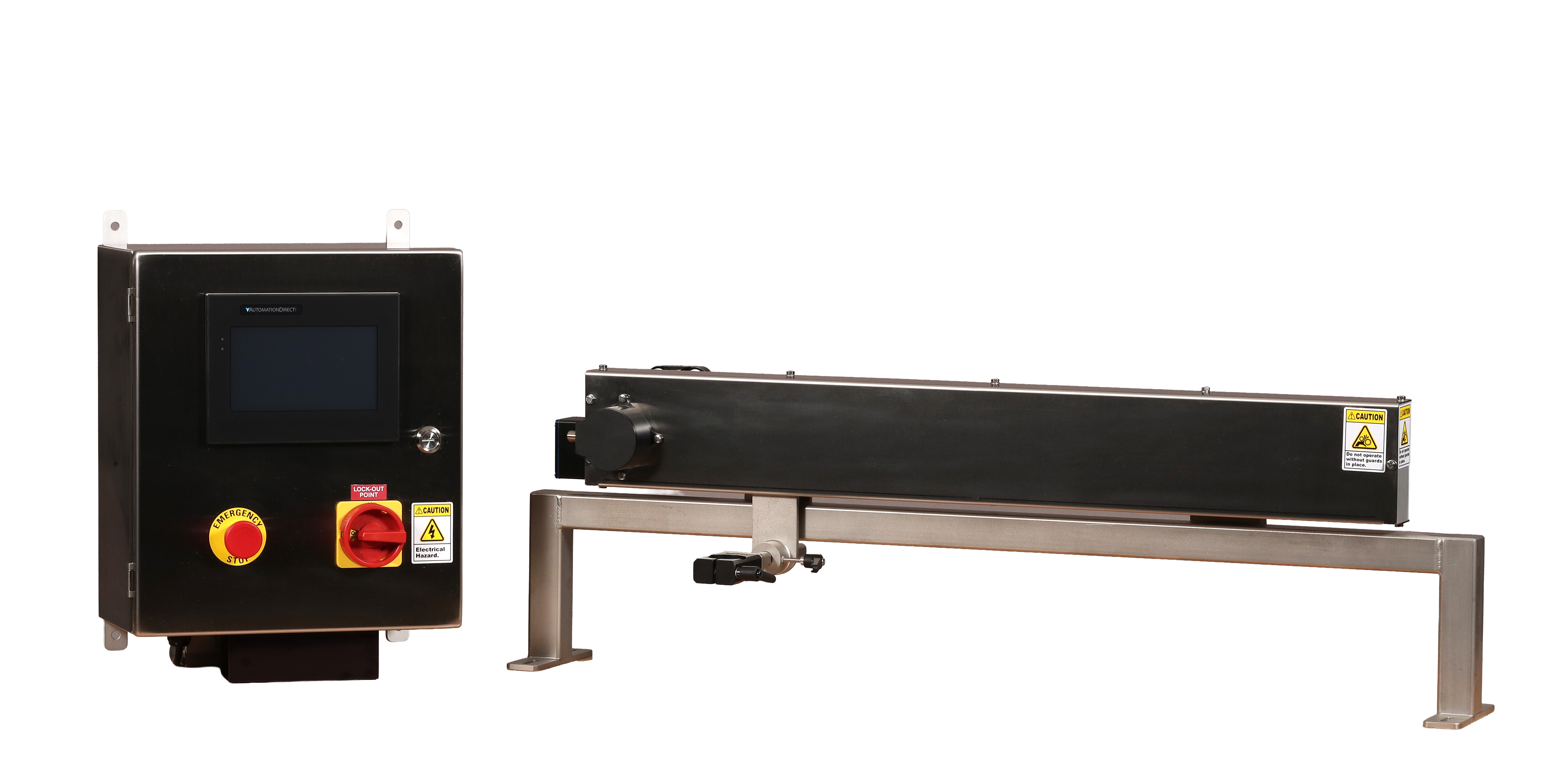

The JETMARK ULTRA HD is an IP65 belt driven axis powered by a closed loop servo motor. The unit is constructed of aerospace grade aluminum coated with a Cerakote anti-corrosion finish. The traverser uses dual rail linear bearings. The rails are plated with an Armalloy finish for corrosion resistance. All fastener and guards are 304 stainless steel. A multitude of mounting configurations are available from cantilever to foot mount.
Unit of Measure

Equipment Specifications

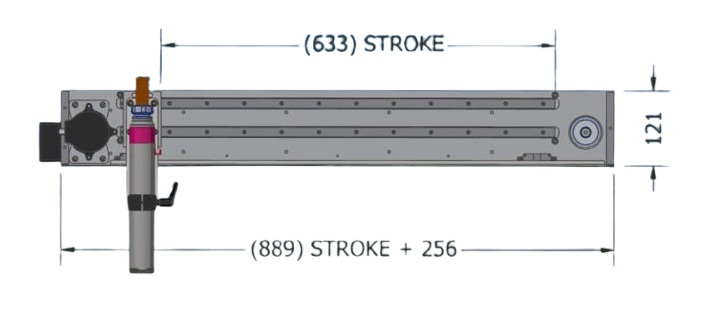

Traverse Length

 N/A 2 m

Maximum Speed

 N/A 200 mps

Alternating Current (AC) Voltage

 N/A 120 V220 V

Current Rating

 N/A 5 A

Equipment Specifications

 N/A Mounting Configured for Machine Type and Location

Standard Control Features

N/A

  • Touch screen HMI unit for data entry
  • PLC control
  • Isolated start input.
  • Remote stop input
  • Contact Outputs for Unit Ready, in cycle, and Cycle Complete
  • 3-30 Vdc Isolated Printer Trigger
  • 3-30 Vdc reverse print output
  • Single or dual channel encoder output
  • 16 independent print trigger positions forward and reverse
  • 10 program storage

Printhead Configurations

N/A Parallel Printheads for High Throughput
Horizontal Multi-Printhead
Pneumatic Shift for Multi Line
Vertical Multi-Printhead

Additional Information

N/A With the dual rail profile, multi-printhead configurations are achievable. The IP65 controller offers a color Touchscreen HMI with multiple configurations available From Single print direction with single print trigger to Dual print direction with up to 16 independent triggers and multiple program storage. Encoder signals are provided with the option of dual channel line driver available.
