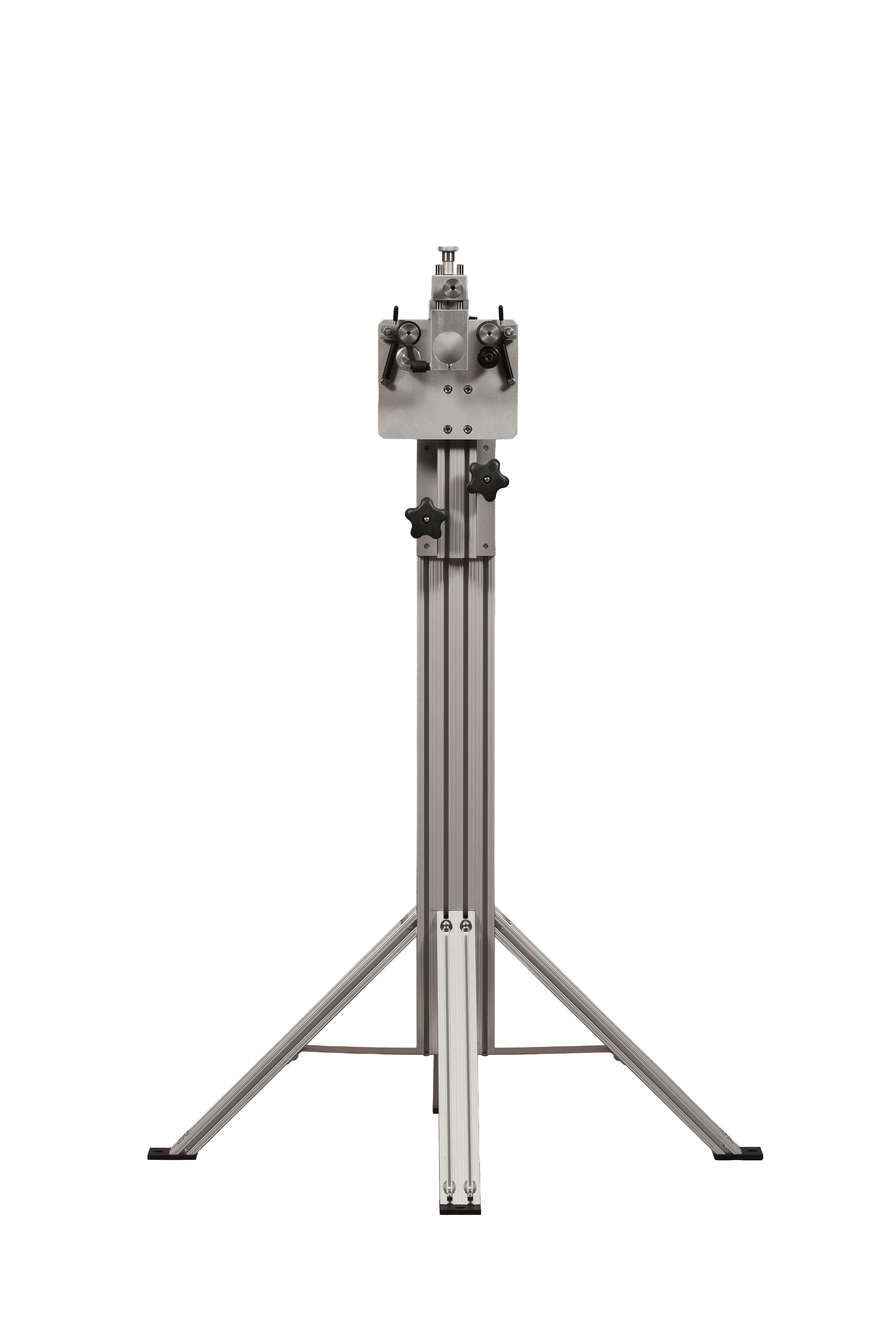

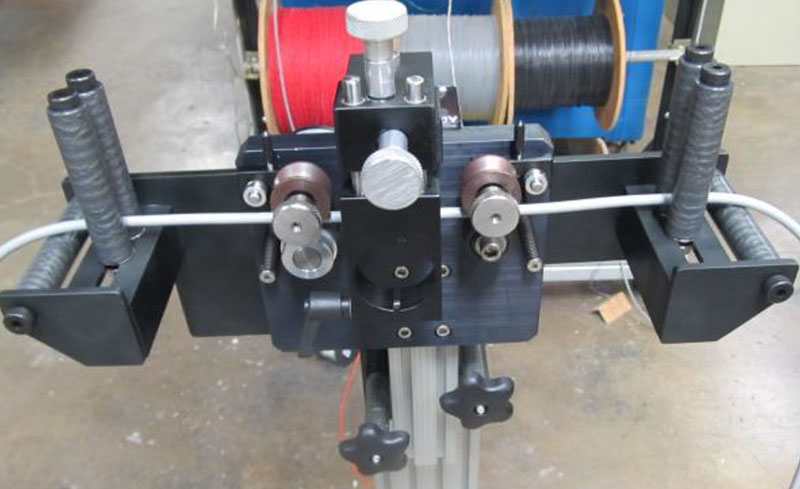

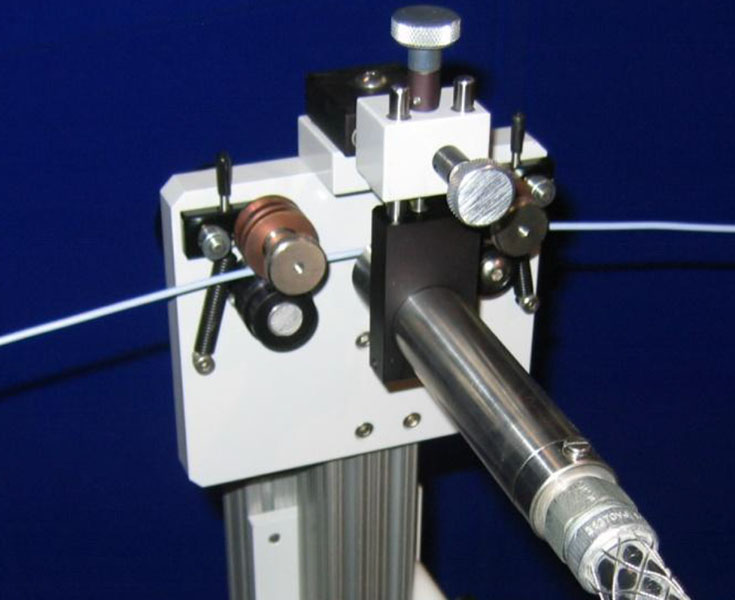

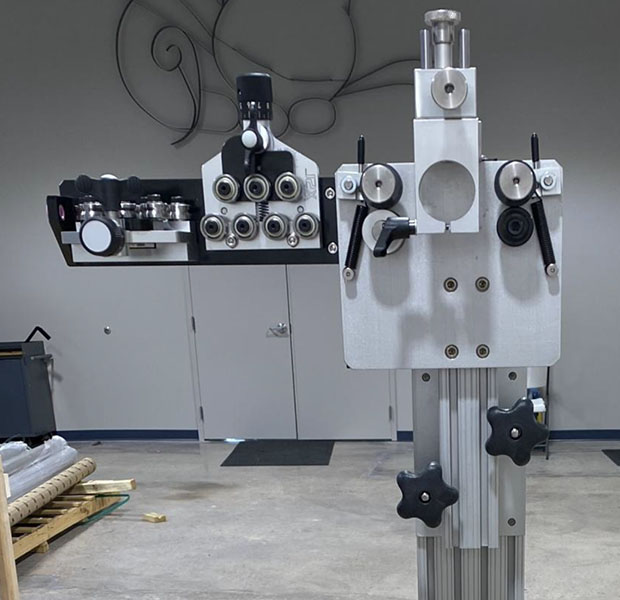

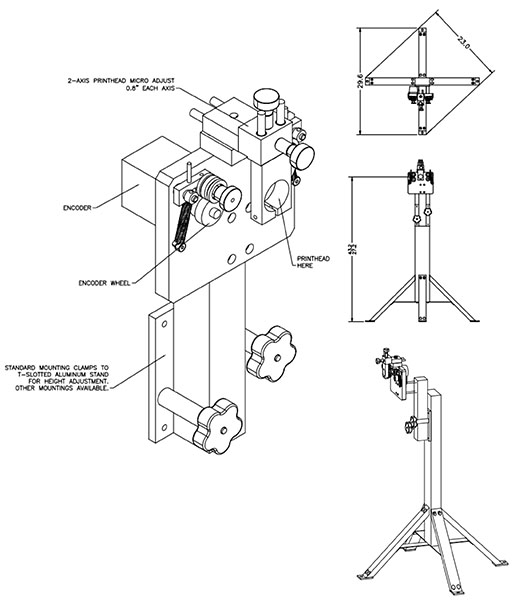

The WCT-1000 is a fixture designed to allow for ink printing on a variety of small tubular products. Inter- changeable guide rollers maintain the position of the product for printing. Spring loaded rollers provide for quick loading while maintaining pressure on the product as it is pulled through the fixture. An encoder attached to a pressure roll tracks motion to provide velocity information to the printer. The print head is mounted in a 2-axis micro-adjust slide that allows quick setup for a wide range of materials.
Unit of Measure

Specifications

Range

N/A 1 to 10 mm

Options

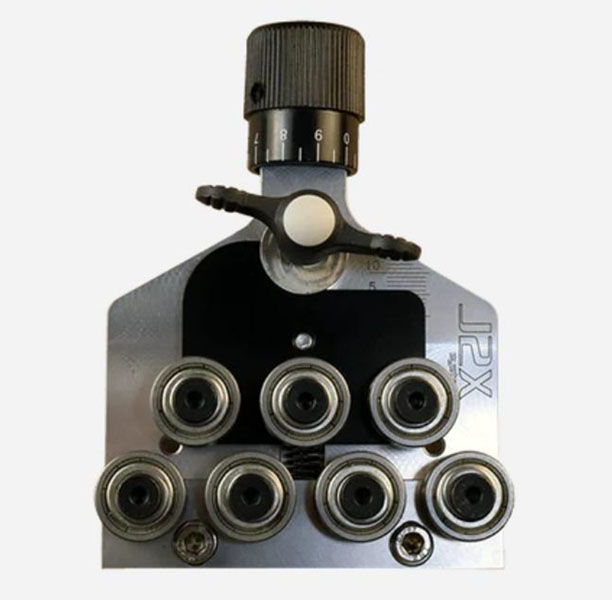

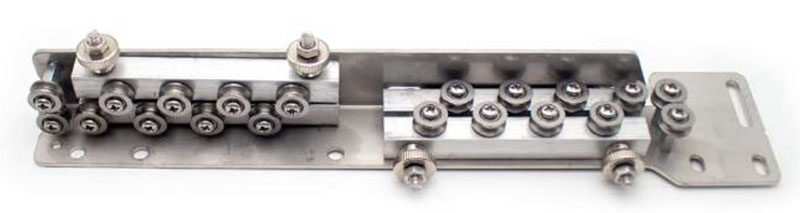

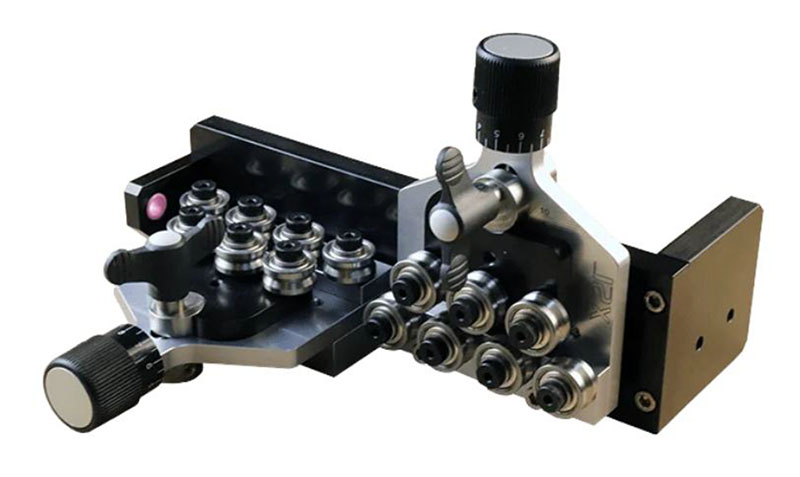

N/A ECG - Exit Cable Guide ICG - Inlet Cable Guide WSX-MG - Single Axis Medium Wire Straightner WSXY-MG - Dual Axis Medium Wire Straightner WSXY-SG - Dual Axis Small Wire Straightner
