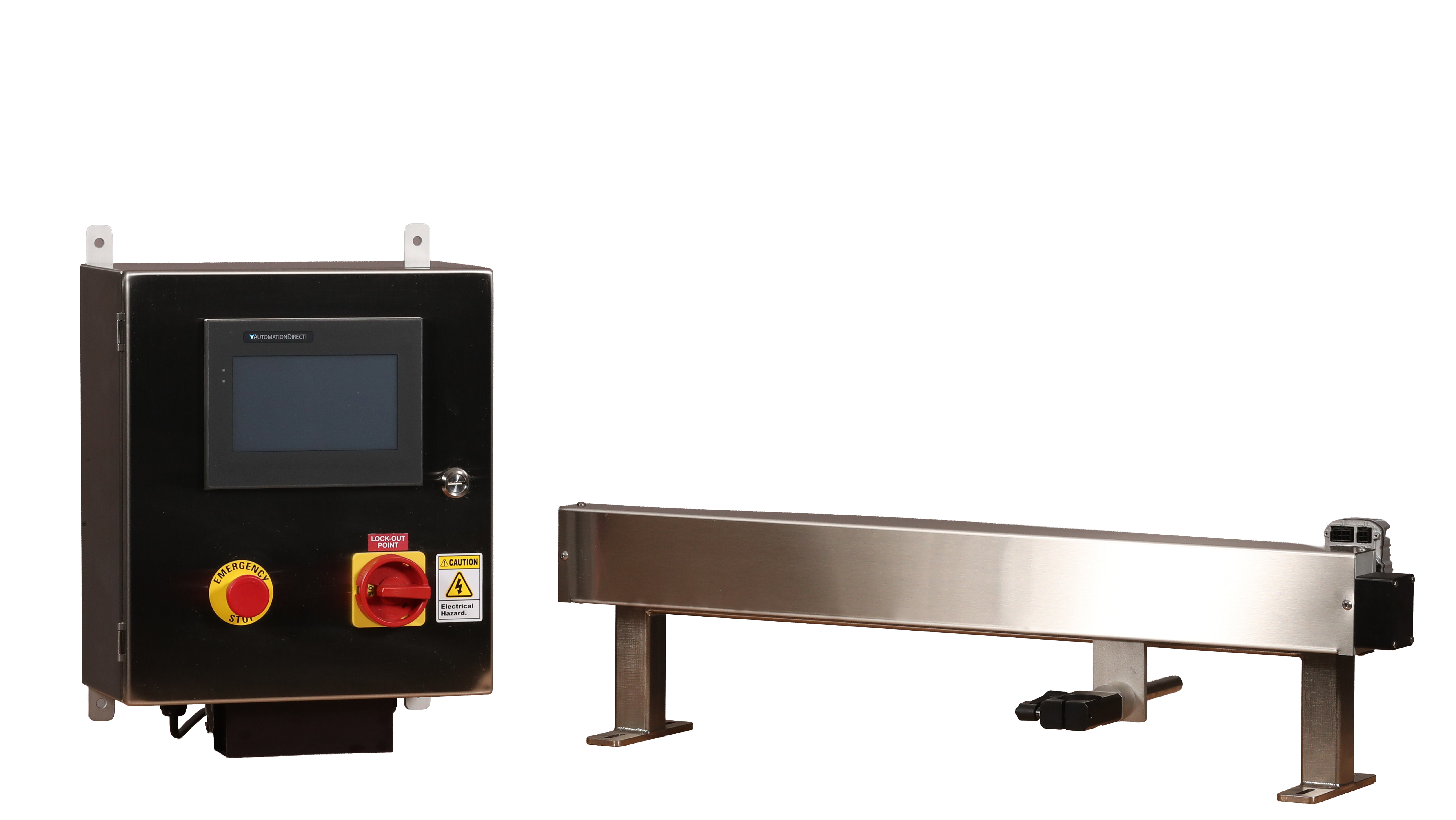

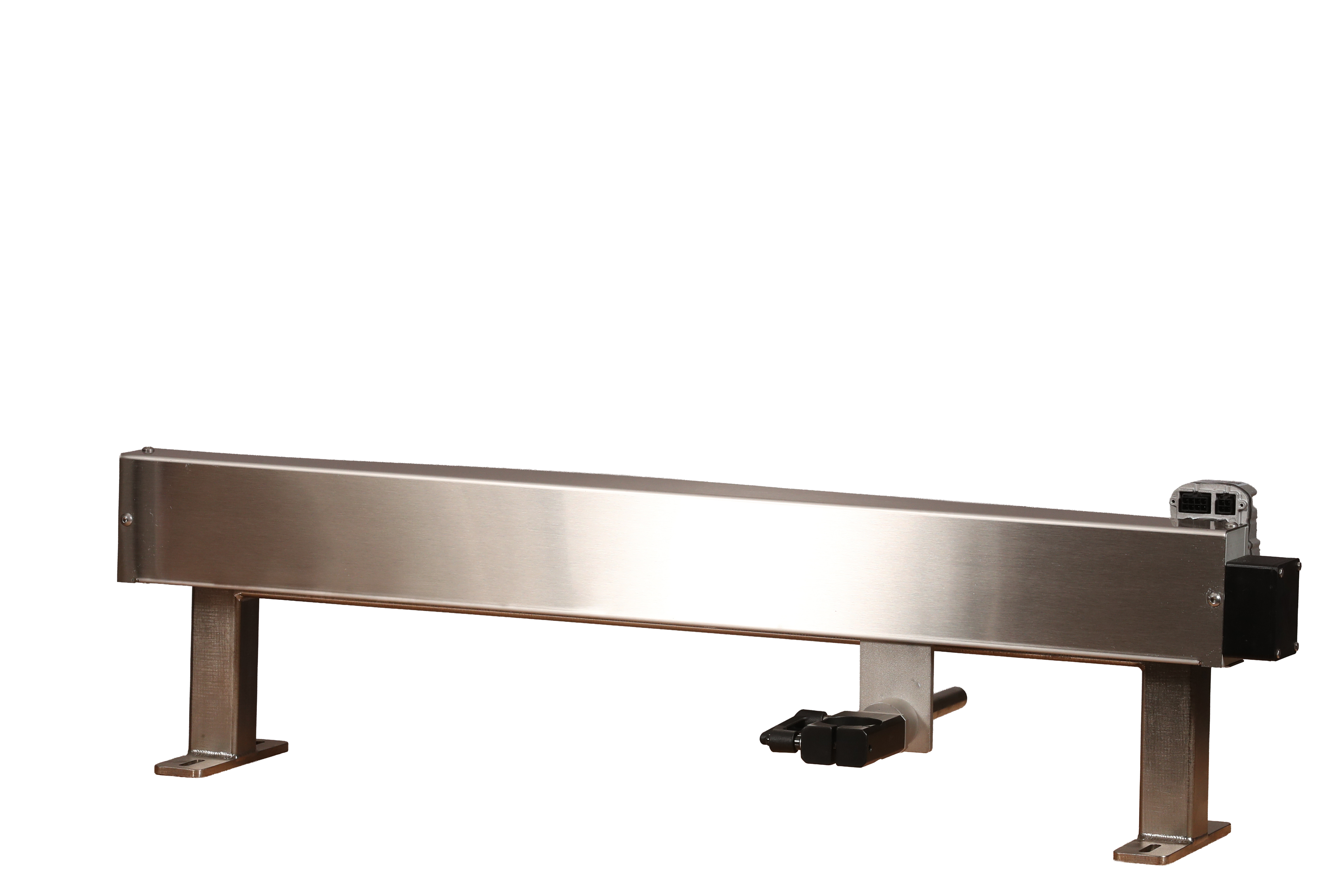

Automation-Plus offers a number of accessories for marking single or multilane packages where product motion does not allow the use of stationary printing devices. Our traversers can be used with CIJ, DOD, TTO, and TIJ printers. For High speed, single print head motion we offer the JETMARK ULTRA. The JETMARK ULTRA is a belt driven axis controlled by a closed loop servo motor. The unit is constructed of aerospace grade aluminum coated with a Cerakote™ anti corrosion coating.
Unit of Measure

Equipment Specifications

Traverse Length

 N/A 48 in

Maximum Speed

 N/A 200 fpm

Alternating Current (AC) Voltage

 N/A 120 V

Current Rating

 N/A 4 A

Equipment Specifications

 N/A Mounting Configured for Machine Type and Location

Standard Control Features

N/A

  • Isolated Relay Start Input 24 Vdc
  • Touch screen HMI unit for data entry
  • PLC control
  • Contact Output for Unit Ready, and cycle Complete
  • Contact Output for Machine Fault
  • 3-30 Vdc Isolated Printer Trigger
  • 3-30 Vdc Isolated Encoder pulse output

Optional Features

N/A

  • Bi directional print with 3-30 Vdc reverse signal
  • 3-30 Vdc Isolated Encoder pulse output
  • 12 independent print trigger positions forward and reverse
  • 10 program storage

Additional Information

N/A All fastener and guards are stainless steel. A multitude of mounting configurations are available from cantilever to foot mount. The controller can be selected to match the applications. From Single print direction with single print trigger to Dual print direction with up to 12 independent triggers and multiple program storage.
